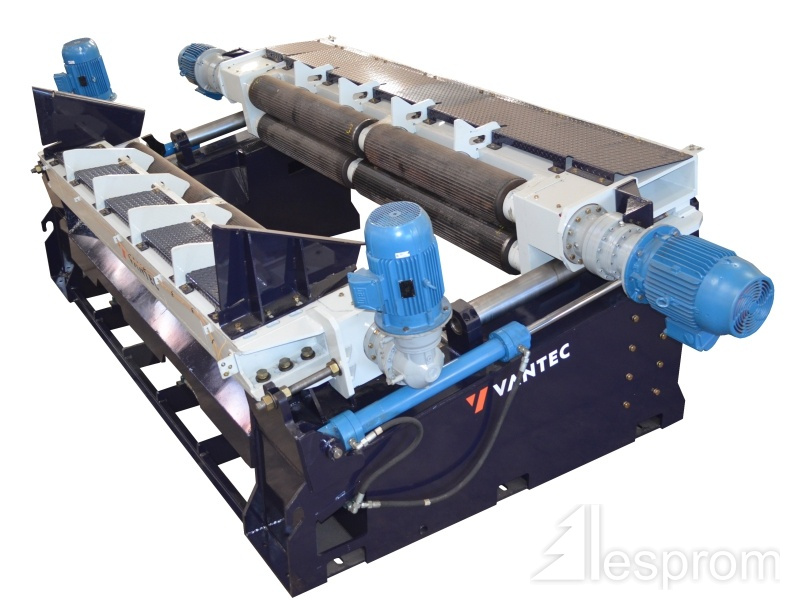

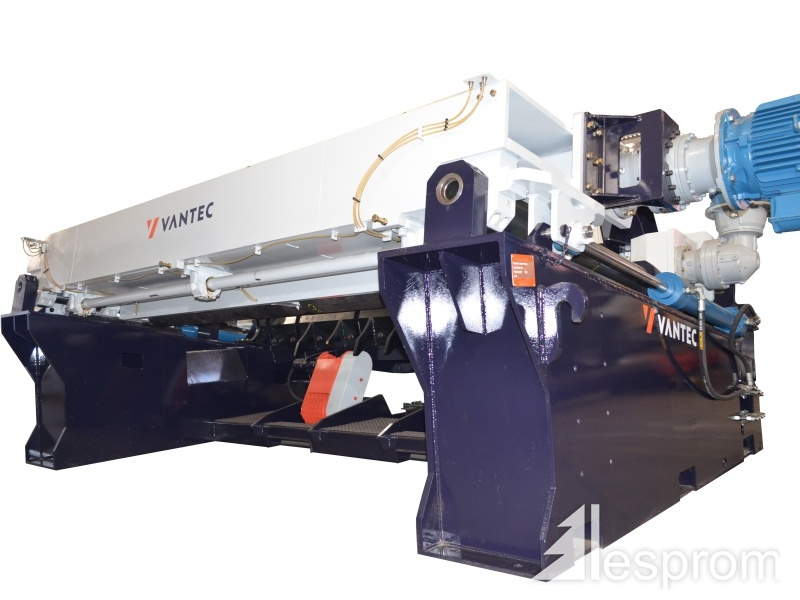

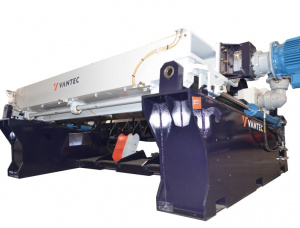

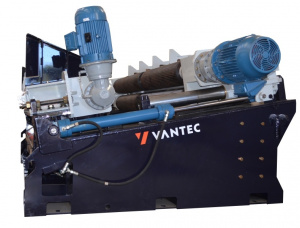

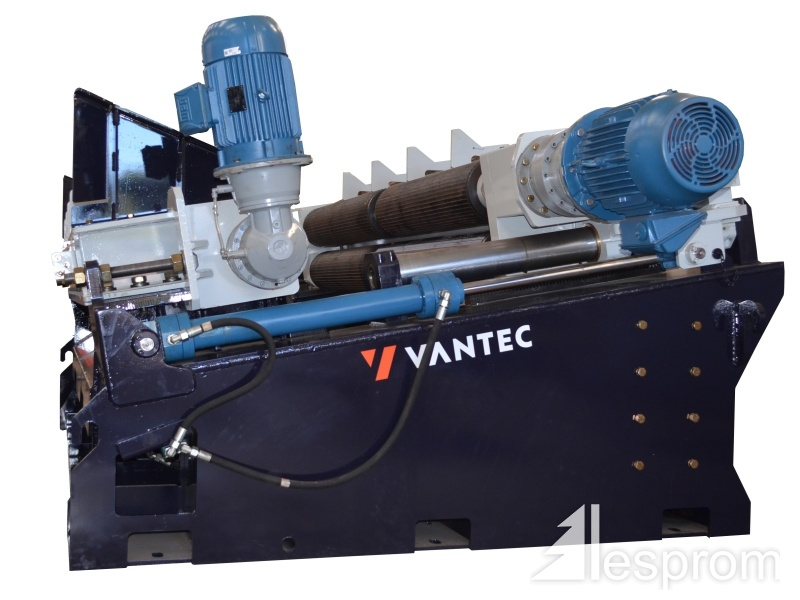

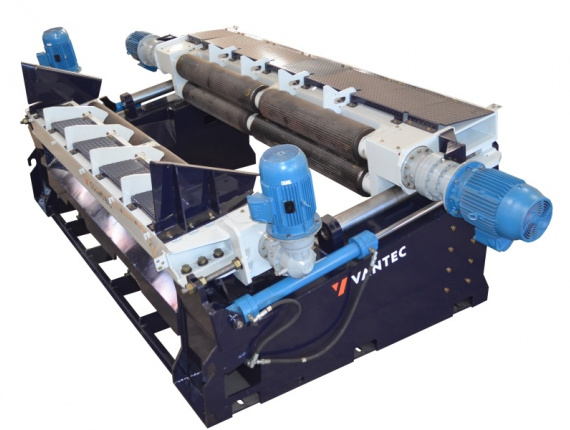

Vantec Log Debarker/Rounder 2800mm D800

Equipment designed for debarking/rounding of logs for veneer production. This debarker is capable of processing logs from 120mm diameter and above. It fitted with metal tempered grooved rollers to press the log against the lathe knife. The log carriage moves on skates and, linear guides

through hydraulic cylinders. It has a rack and pinion system that ensures the alignment of the carriage. It also comes with the drive panel, but it does not come with lathe knife

Maximum Diameter capacity (logs with

bark): 800 mm;

• Maximum diameter for debarked/rounded logs: 600mm;

• Minimum diameter for debarked/rounded logs: 150mm;

• Max. log length: 2.800mm;

• Min. log length: 1.800mm;

• Planetary gear motor: BONFIGLIOLI;

• Rail Skids: 65 model;

• Power of the rollers: 80hp 4p

(2x15+2x25hp);

• Cylinder diameter: 63mm;

• Hydraulic unit: 210 l;

• Motor unit: 10 hp 4p;

• Hydraulic pump: 60 l / min;

• Width: 7.000 mm;

• Length: 3000 mm;

• Height: 3.200 mm;
