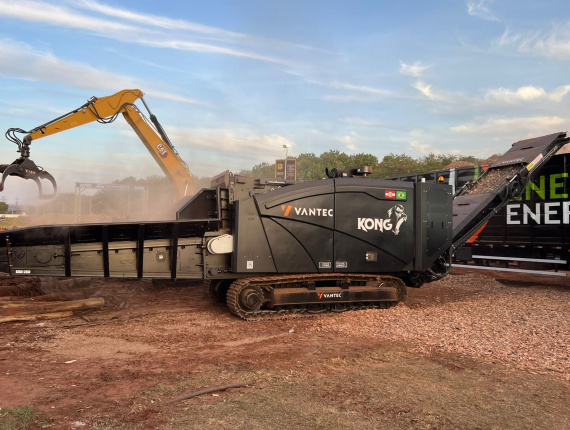

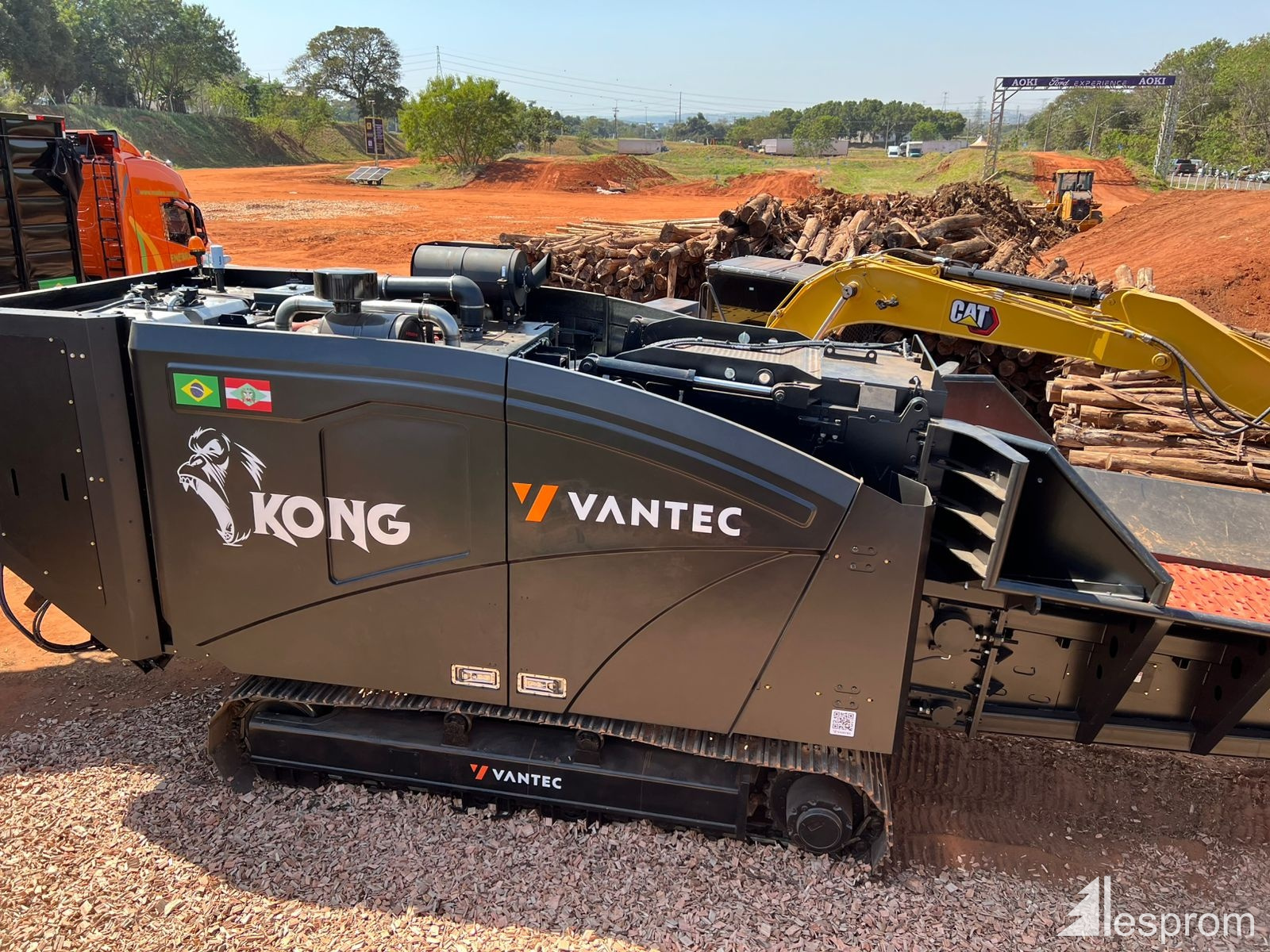

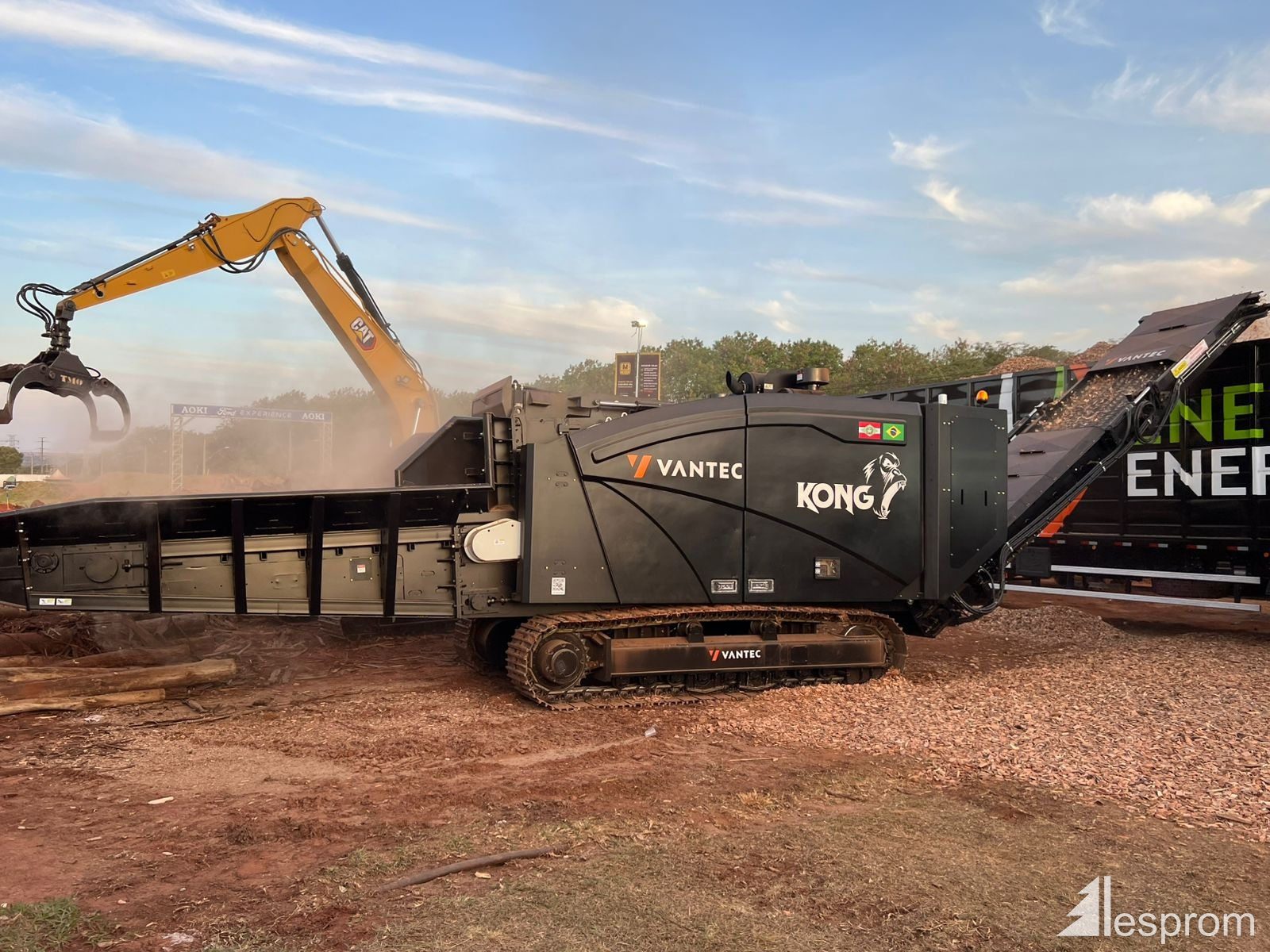

The Vantec KONG model is a high-performance, tracked forestry chipper, engineered for the processing of whole logs, branches, and residual wood material. Built with a heavy-duty monoblock frame constructed from welded structural steel, it delivers rugged durability under demanding operational conditions.

Designed with a compact footprint, the KONG chipper offers easy access to key service areas, including the engine and hydraulic system, ensuring faster maintenance and reduced downtime.

The machine is mounted on a reinforced crawler track system, featuring hardened steel pads, engineered to traverse challenging terrain with stability and control. The unit is self-propelled, with travel and machine functions operated via a 10-function wireless remote control for optimal field maneuverability.

• Inlet width: 1250 mm;

• Standard maximum log diameter: 450 mm and for Branches 1.000 mm;

• Rotor diameter: 1.000 mm;

• Toothed roller: 01 upper;

• Toothed roller: 02 lower;

• Main motor belt: Torque-Team;

• Inlet conveyor speed: 15 to 45 m.lin/min;

• Rotor knives: 02 Bi-parted knives;

• Counter-Knife: 01, with withdrawal through hydraulic extractor;

• Knife to be sharpened after every 1000 m³ of chip production;

• Nominal chip size (Low density): 20 - 50mm;

• Nominal chip size (High density): 20 - 35mm;

• Production Capacity: 220 to 500 m³ per hour (it may vary according to the efficiency on the log infeed)

• Diesel engine: Scania DC6 078A 842 HP;

• Fuel tank: 700 liters;

• Hydraulic unit: 700 liters;

• Fuel consumption: 40 – 80 L/h

• Inlet conveyor length 4.400 mm,

• Chip discharge height: 5.000 mm;

• Chipper Width: 2.800 mm;

• Chipper Height: 3.500 mm;

• Overall length: 13.500 mm;

• Approximate weight: 40 tons
